WiTi Breakaway Switch
WiTi Breakaway Switch
Couldn't load pickup availability
Important Delivery Notice: We kindly request a valid physical address for all orders as we are unable to deliver to PO Boxes. Remote deliveries may take longer than 1-2 business days. Thank you for your understanding and cooperation.
- Locks trailer brakes instantly on unauthorised hitch attempt
- 105dB horn + all external lights flash as deterrent
- 6-Axis Gyroscope detects movement, towing and break-in
In the event of trailer separation from the tow vehicle, safety chains alone may struggle to control heavier trailers (2000kg+). The WiTi Breakaway Switch activates upon disconnection, triggering the WiTi Anti-Theft System to engage the trailer brakes and bring the vehicle to a controlled stop.

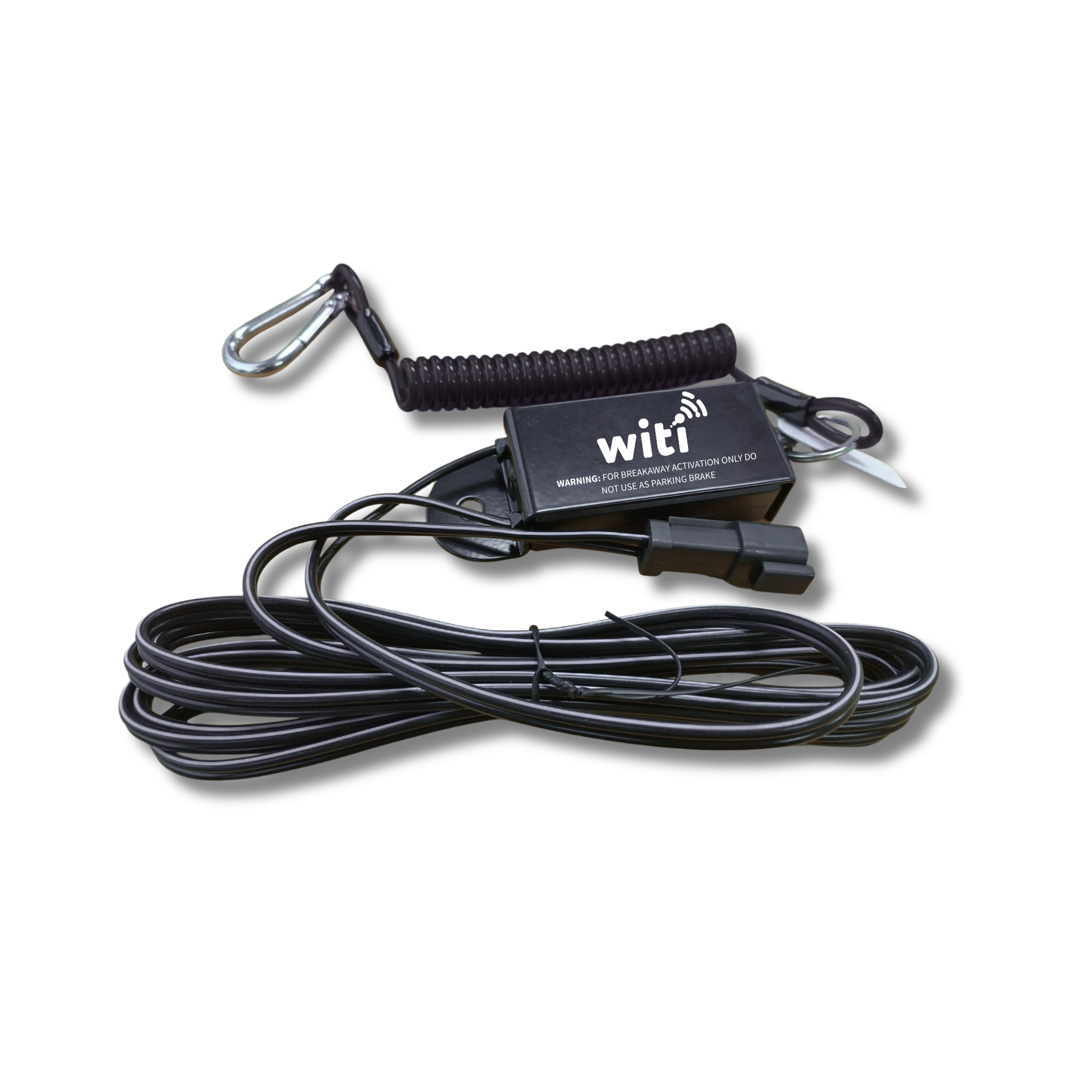

Kit includes Breakaway switch with 3.5m loom and prewired Deutsch Connector DT04-2P for easy plug n play connection the Witi Anti-Theft loom.
| Power | 12V DC via house battery (always-on standby) |
| Motion Sensor | 6-axis IMU — 3-axis accelerometer + 3-axis gyroscope, shared with SafeTow via encrypted Wi-Fi pairing |
| Alarm | 105dB integrated horn + external light flash (tail & indicators via trailer harness) |
| Brake Output | Direct to electric brake circuit — 7-pin or 12-pin trailer connectors |
| Intrusion Sensors | Magnetic door switch + PIR interior motion sensor (both included) |
| Alarm Cycle | 30 seconds active, 30 seconds monitoring, repeats while motion detected |
| Connectivity | Bluetooth (SafeTrack GPS) · Encrypted Wi-Fi (SafeTow Brake Controller) |
| Compatible Vehicles | Caravans, camper trailers, boat trailers, trade trailers with 12V supply and electric brakes |
| Warranty | 2 years + lifetime product support |
| Origin | Designed & manufactured in Perth, Western Australia |
| SKU | 480 |
What’s in the box
- WiTi Anti-Theft System (SKU 480)
- 2 × Remote Controls
- 1 × Wireless PIR Motion Sensor
- 1 × Wireless Magnetic Door Switch with Switch Loop
- 1 × External Status LED
- 1 × Horn
- 1 × Wiring Loom terminated with Deutsch Connectors
The Anti-Theft System requires hardwiring into your caravan or trailer's 12V electrics — typically 3–5 hours for a competent DIY installer. All other WiTi products (SafeTrack GPS, SafeTow, Breakaway Switch) are plug-and-play and pair wirelessly. Professional installation is available via our dealer & installer finder.
Yes — the Anti-Theft System is compatible with all standard 12V electric trailer brake systems, connecting directly via the trailer's 7-pin or 12-pin connector. Note: it cannot be wired into motorhome braking circuits.
The system draws less than 5mA on standby. For long-term storage, a solar trickle charger or disconnecting the unit is recommended. The system shuts down protectively if voltage drops below ~11.5V.
Only the WiTi SafeTrack app can remote arm and disarm, as long as the GPS module is connected to a Wi-Fi or cellular network. RF remotes have a 5–10m range from the Anti-Theft unit.
The alarm and intrusion detection features work on motorhomes. However, the electric brake lock cannot be wired into motorhome braking circuits. For external lights to flash on alarm, the unit must be wired into the vehicle's lighting circuits — check with your vehicle manufacturer before installation.
All WiTi products carry a 2-year manufacturer's warranty against defects, plus lifetime product support. Australian buyers have additional rights under Australian Consumer Law. To start a claim, contact our support team with your order number and SKU.
